Keep your samples cool during sonication

Sonication generates heat which may be detrimental to most applications. The #4905 high capacity chiller easily automates the cooling process. Controlling temperature by adding ice chips and repeatedly changing the water is no longer necessary. The #4905 model does not have an internal reservoir to hold water. It will circulate and chill the water held within a cup horn or microplate horn without affecting the water level.

Quick-connect tubing and fittings (ordered separately) are used to attach the chiller to the ports on the cup horn or other system. Simply set the chiller to a desired temperature, from 5-45°C, and cold water will recirculate through the system.

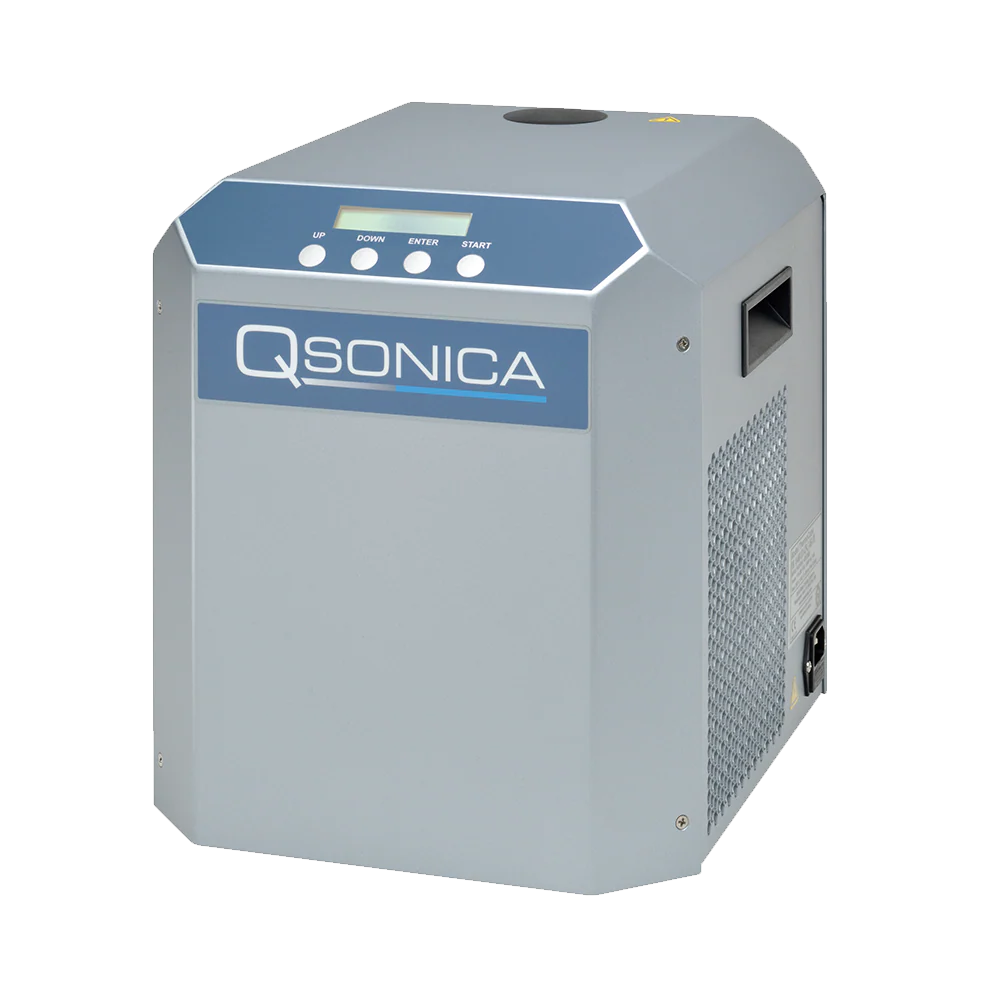

The #4906 is a high capacity chiller with an internal tank to hold water. This model can be used with a flocell or other devices that require cooling. Note this unit is not recommended for use with a cup horn system. The #4906 chiller includes a standard set of tubing and connectors. Customers can use their own fittings/tubing if other sizes are needed.

Older model Sonicator accessories may require special fittings so please contact us for ordering assistance. Tubing and connector sets are sold separately.

Cooling capacity	400 watts
Flow rate	1 Lpm
Fittings	1/4” female CPC quick connect
Interface	RS232
Voltage	115-230 VAC
Dimensions	13" x 11" x 13" (32 x 28 x 32 cm)
Weight	28 lbs. (12.7 kg)
Operating range	5 - 45 degrees C

Drain Excess Water from Chiller

Recirculating Chillers

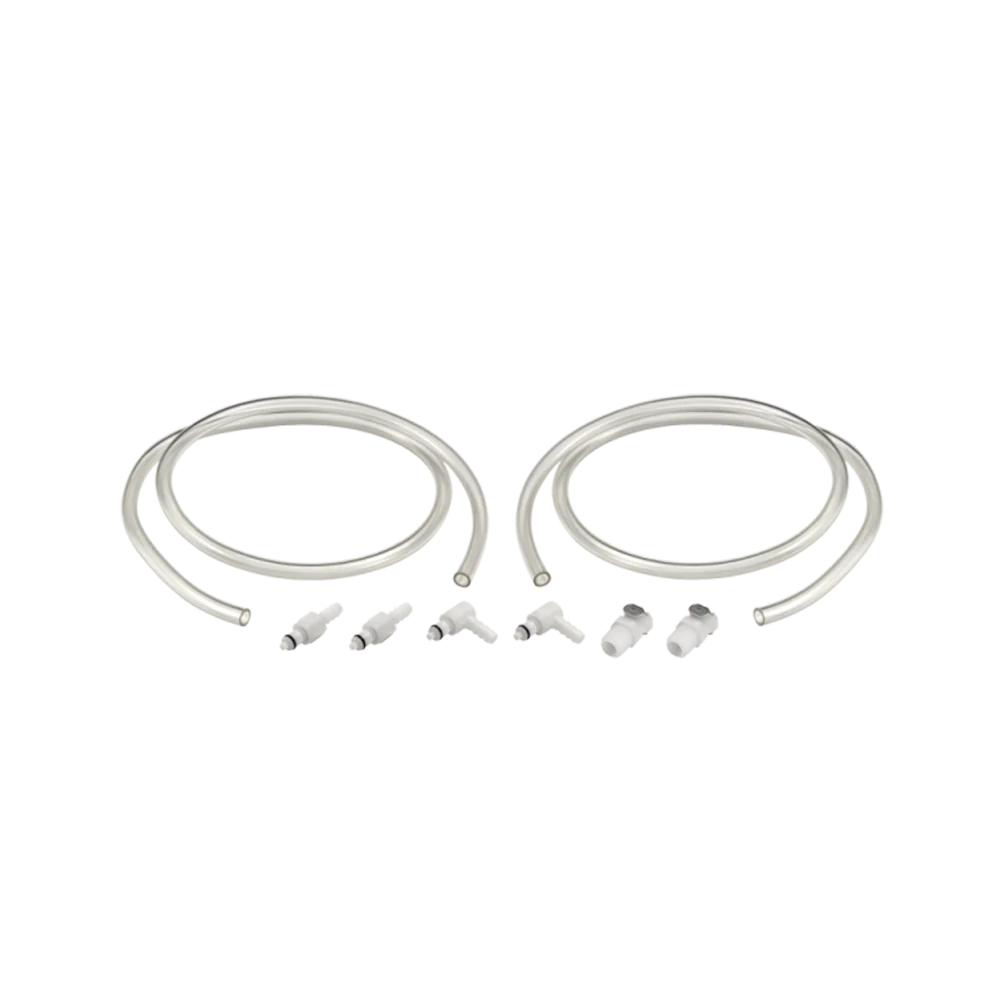

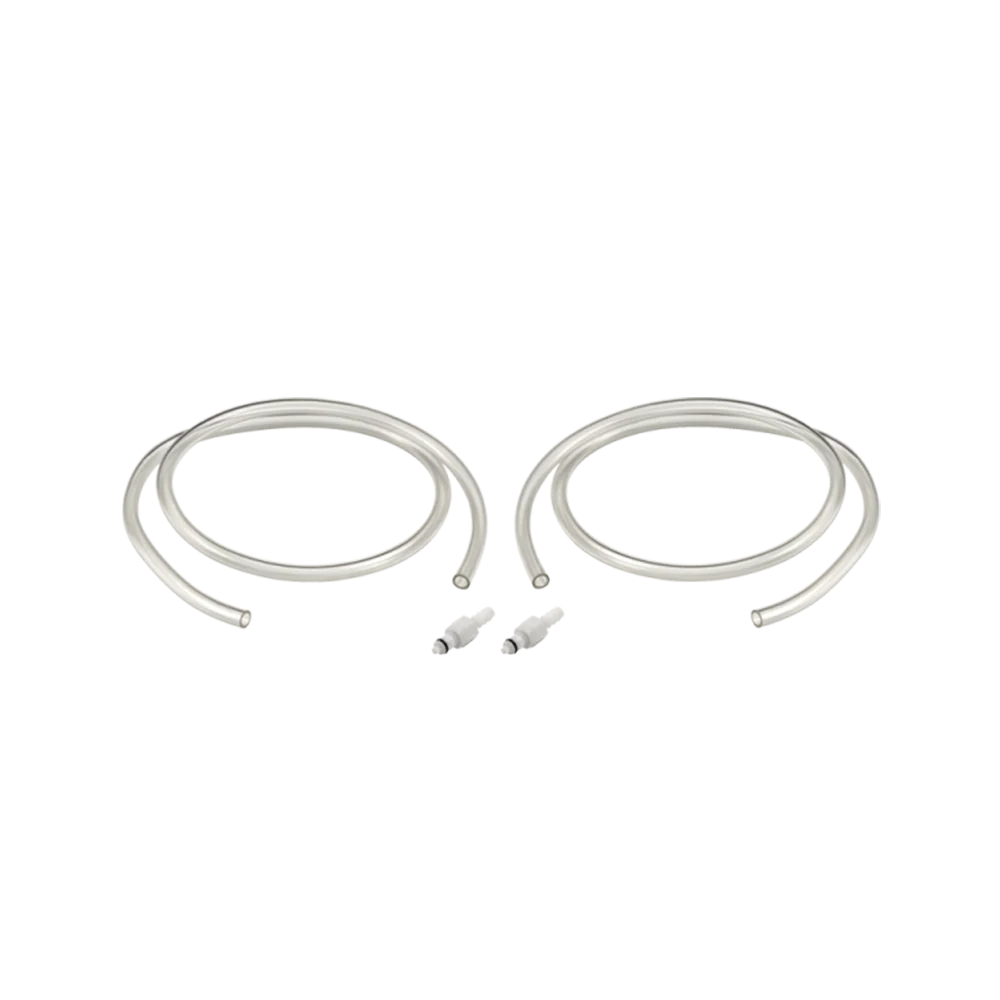

Accessories for High Capacity Chiller
